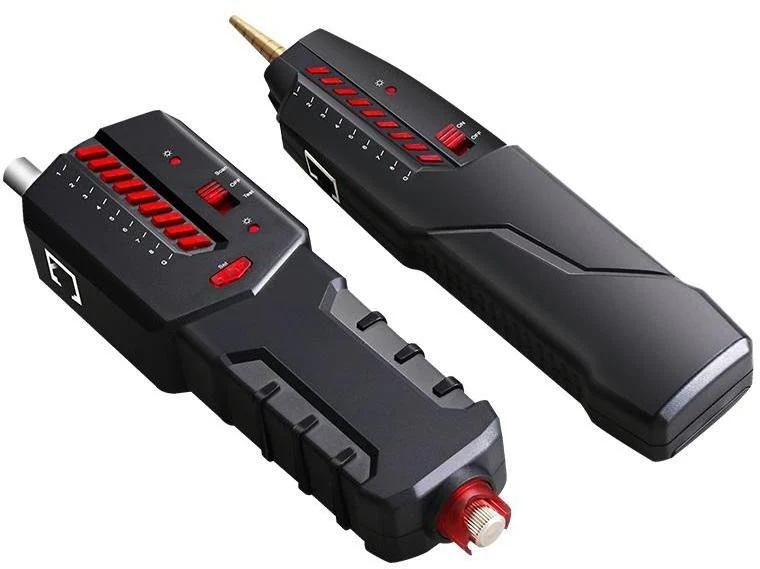

Wire Tracker Multifunctional RJ11 Cable Tester Line Finder With NCV Probe for Wire Tracer Ethernet LAN Network Cable Collation

1. Product Feature

> Support POE Switch online test

> Support online test network cable

> Support optical fiber cable test(option)

> Support polarity of power source test

> Built scan voice and speed set function

> Support BNC and RJ11 line trace

> Emitter Support auto power-off

2. Product Specification

Support cable type	4P/8P network cable，telephone cable，BNC cable，single-wire
Test max distance	>200m
Scan max distance	>300m
Support max voltage	48V（only ejector）
Signal frequency	455Khz
Battery type	9V
Ejector power consumption	Max:0.15W
Receiver power consumption	Max:0.2W
optical fiber power	5mW
Environment	Operating Temperature: -10 ℃-60 ℃
	Relative Humidity: 10%-90%(non-condensing)
	Storage Temperature: -20℃-70℃
	Relative Humidity: 5%-90%(non-condensing)



This instrument is a multi-functional handheld cable testing tool. Work perfect when RJ11 RJ45 cable is on power. It has a wide application with reinforced cable types and multiple functions. It is a necessary testing tool for telecommunication engineering, wiring engineering, and network maintenance person.

Scope of Application:

1. 1. Education
   2. Home appliance
   3. Industrial
   4. Market
   5. Office
   6. Supermark

Function:

1. Telecommunication network, line engineering and routine aintenance
2. Computer network line engineering
3. Other metal wire wiring works and maintenance work

What's In The Box?

• 1 x Emitter
• 1 x Receive
• 1 x User Manual
